Product Description
High strength: The 3D fence is composed of steel wire mesh and steel pipe, which has high tensile strength and compressive strength, which can effectively prevent external damage.

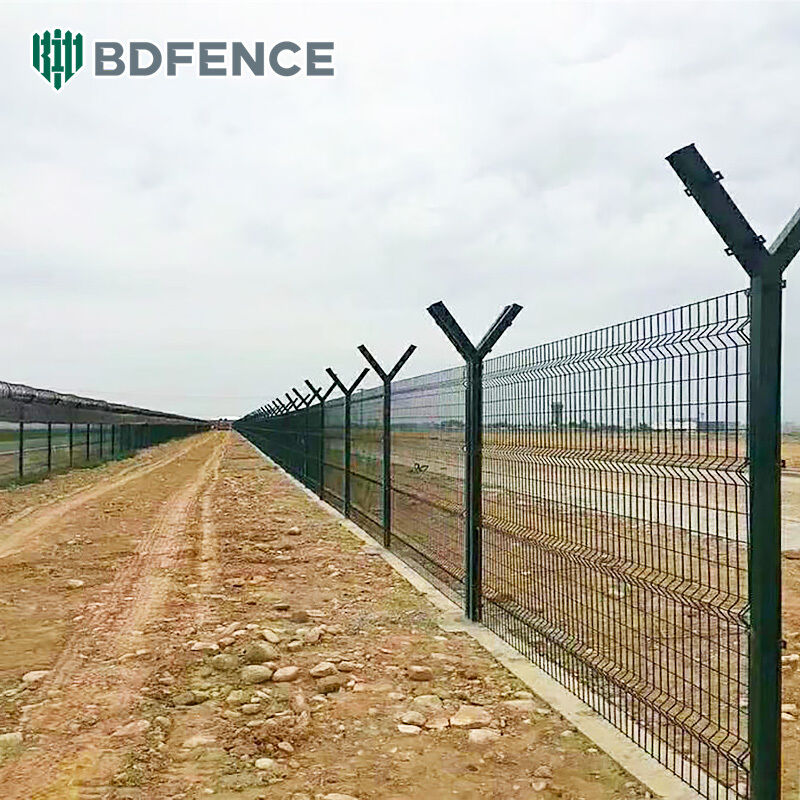

An airport fence is also known as a Y-shape security fence due to its Y shape of posts. Airport fences are usually combined with concertina razor wires or RBT wires for higher security.
Apart from the fence topper, special treatment of V-bending is also applied to increase the transverse strength of fence panels.
This classic type of airport security fence is mainly used in airports all over the world.
Clearvu fencing specification:
Panels
The panels are 2515mm wide and heights range from 900 to 5200mm.
Mesh sizes are 76.2 x 12.7mm, and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).
Featuring a toe and finger proof mesh aperture, this system combines an anticlimb and anticut fence with excellent through visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground to prevent burrowing.
|
358 Anti Climb Fence Specification
|
||||
|
Fence height (m)
|
Panel size (Height×Width)
(mm) |
Fence Post
(Height×Size×Thick(mm) |
Clamp Bar
(Height×Width×Thick)(mm) |
Middle Or Corner
Clamp No. (pcs) |
|
2
|
2000x2515
|
2700x60x60x2.5
|
2000x60x5
|
7 or 14
|
|
2.4
|
2400x2515
|
3100x60x60x2.5
|
2400x60x5
|
9 or 18
|
|
3
|
3000x2515
|
3800x80x80x2.5
|
3000x80x6
|
11 or 22
|
|
3.3
|
3300x2515
|
4200x80x80x2.5
|
3300x80x6
|
12 or 24
|
|
3.6
|
3600x2515
|
4500x100x100x3
|
3600x100x7
|
13 or 26
|
|
4.2
|
4200x2515
|
5200x100x100x4
|
4200x100x8
|
15 or 30
|
|
4.5
|
4500x2515
|
5500x100x100x5
|
4500x100x8
|
16 or 32
|
|
5.2
|
5200x2515
|
6200x120x120x5
|
5200x100x8
|
18 or 36
|
|
Note
|
The panels are made of high grade steel in height 2m to 3m,several panels can be installed on top of each other. Thus may be
achieved a total height which you need. |
|||
|
Contact us
|
Most of Anti Climb Fence can be customized, please let us know your request.
|
|||
Post
Square post: 40 x 40mm; 50 x 50mm; 60 x 60mm; 80 x 80mm
Rectangle pst: 40 x 60mm; 60 x 80mm
Post thickness:1.2mm; 1.5mm; 2.0mm; 2.5mm
Coating
Panels are manufactured from pre-galvanized wires.
An adhesion coating is applied to allow perfect adhesion with the polyester coating (min. 100 micron).
Posts are polyester coated with a galvanized substrate in accordance with Euro norm 10147.
Colours
Standard colours are Green RAL6005 and Black RAL9005.
Other colours are available on request.
It supply more security when the Clearvu fencing add the barbe wire or razor barbe wire.
Hebei Bending Fence Technology Co.,Ltd was founded in 1992 as a manufacturer of wide variety
metal fences. We engaged in the production, research, development, sales, and services of metal
fences, gates, and barriers.
BD FENCE spent more than 3 decades of experience providing fencing solutions, we gain enough
knowledge on how to produce top-quality fencing which led us to become a trusted
supplier & exporter globally.
As one of the manufacturing pioneers in metal fencing solutions. We also accept customizing
metal fences with excellent quality. With professional experience in the metal fence business,
our skilled staff members are able to provide the highest level of support, including drafting
and engineering of our products. In order to meet our clients’ project requirements.
What clients said about BD Fence.
Our Service
1. Our products offer 10 YEARS GUARANTEE.
2. Product customization services
We can customize products according to your requirements, including design and drawing.
3. After-sales service
Our after-sales service start immediately after signing the contract.
3.1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
3.2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.3. Do our best to help customer arrange the shipment and customs clearance.
3.4. Full information for installation, maintenance and repair instructions .
FAQ
1.Are you a factory?
Answer:yes,we are a factory that manufactured fence for 32 years.
2.Can you send the cargo to seaport? Where is your nearest sea port?
Answer:yes, sure ,our nearest seaport is Xingang Port.
3.How about the height fence?
Answer:The height is about 2m, but we accept all customized size,you can let us know the height and the length, then we can make design and calculate the prices.
4.Can I have more details of the fence, such as real picture and the accessories?
Answer: yes, sure, please contact us,we will send you drawing and the details parts pictures.
5.Can you make the color according to our request?
Answer: yes,we can ,the common color is Green,Yellow,White,Gray. If you have more question, please contact us for best service
6.How long does it take to produce?
3 to 4 weeks is the delivery time range depending on the model and quantity of the fence.
7.Do I need to hire a professional installer for my metal fence?
All of our metal fences are very easy to install. Aside from its easy installation, we also provide an installation guide. That’s why you can even install it by yourself.
